Vertical balancing machine for rotors up to 30 kg Distec - Schenck v České republice
Compact design
Small space requirement
Quick and uncomplicated starting operation
Can be installed without foundation
Highest measuring accuracy
Ergonomic operating concept
Can be equipped for axial or radial compensation of unbalance
„crane hook solution“

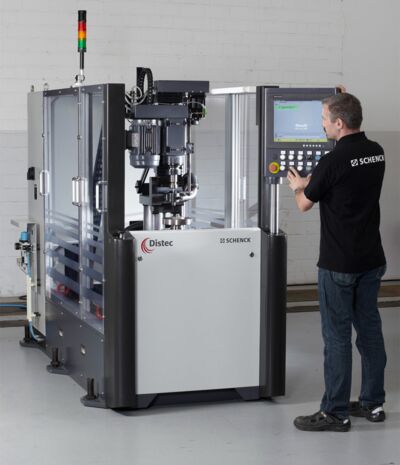

Design

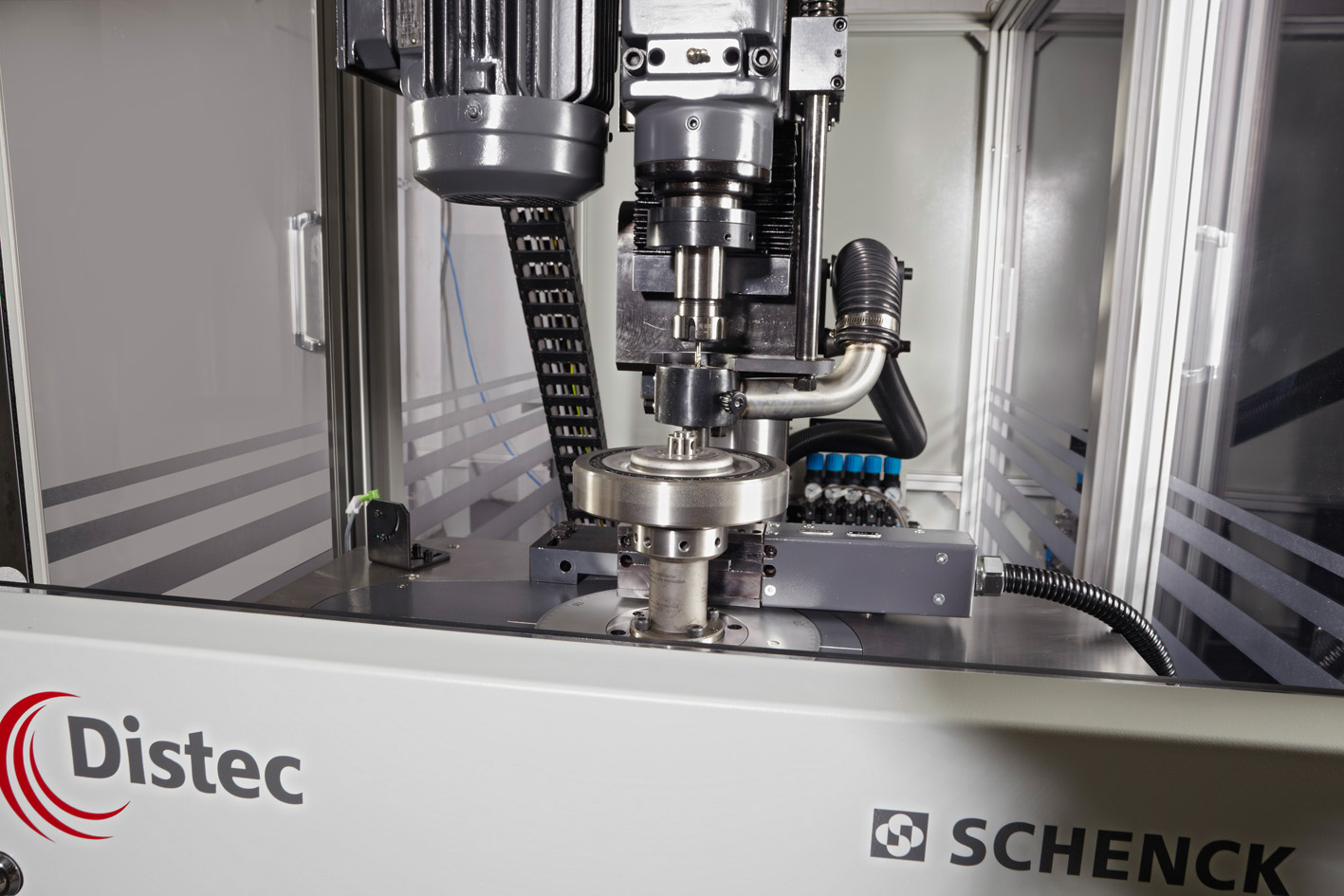

The machine consists of a vertical balancing device with an attached,
automatically operating drilling unit. The body to be balanced is
clamped on the balancing machine by means of a spring-force actuated
receptacle that is pneumatically released. The measuring device CAB 759
is used for determining the unbalance and computation of compensation.
Special features
Short lead time to delivery
Universally applicable
Automatic compensation through axial or radial drilling
Automatic measuring cycle is selectable with stepless, adjustable values for run-up, measuring and braking time
Design
Application area
Distec is a versatile automatic balancing machine for balancing disc-shaped rotors, like flywheel, brake disc, twin-mass flywheel, pulley, vibration damper, gear wheel, drive disc, brake drum, differential housing, clutch parts, converter components, double clutch components, hybrid rotors.
The rotors are received in their centring hole, the unbalance measurement occurs on one or two levels.
The unbalance compensations occur through vertical or horizontal drilling, which can be converted independently of work piece in a user friendly/easy manner.
Distec allows both manual as well as automatic loading. The manual loading occurs through the pneumatically opening front disc. Automatic loading can be carried out by a loading portal, a pallet belt-conveyor, or a robot.
Technická data
Technical data at a glance
Measuring unit
CAB 759
Color touch screen
•
Combined measuring / correction station
•
Manual loading
•
Automatic cycle
•
Automatic load/unload door
•
Clamp tool actuation unit (push-to-unlock)
•
Horizontal and vertical drilling
•
Spindle drive system
servo
Drill feed
servo
Drill speed
FC
Changeover
manual
Rotor
Weight, max. 2)
[kg]
30
Diameter, max.
[mm]
500
Brake disc height, max.
[mm]
150
Machine
Width A 4)
[mm]
1200
Depth B 4)
[mm]
2700
Height C 4)
[mm]
1800
Balancing speed
[min -1]
600-1000
Measuring uncertainty 1)
[gmm]
4
Air pressure
[kPa]
600
Supply power
[V-Hz]
3x400-50/60
Power consumption
[kVA]
10
Color
RAL7035 (light grey) and
RAL7024 (graphite grey)
Options
Interface for auto load/unload
Vacuum unit
1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Rotor plus adapter
